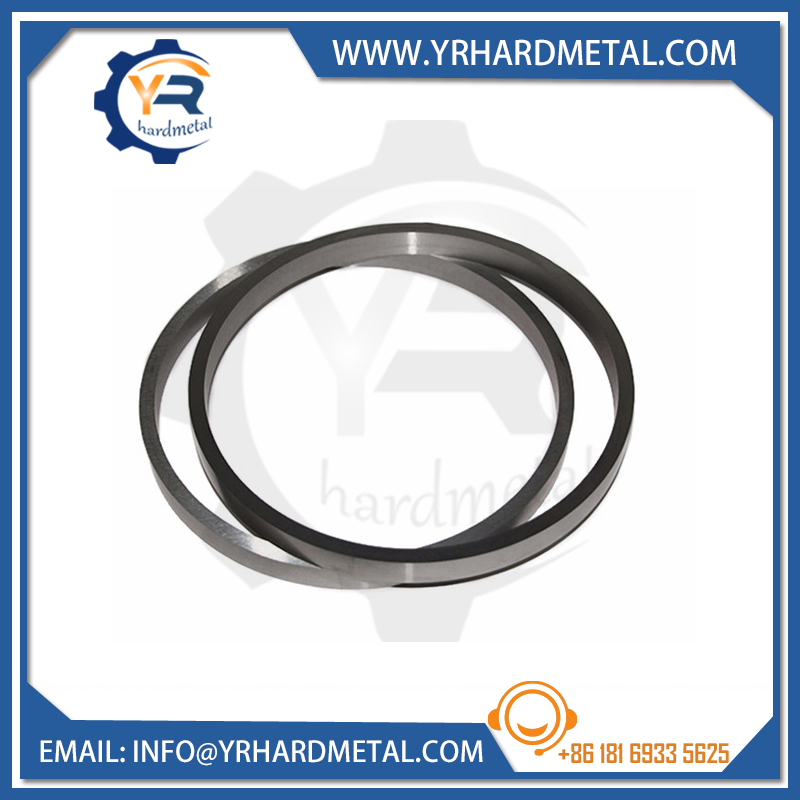

Tungsten carbide ring

Cemented carbide sealing ring

1. Tungsten carbide sealing ring has the advantages of wear resistance, corrosion resistance characteristics, widely used in petroleum, chemical and other fields of mechanical seal, the product has a flat ring (PH) and step type ring (th) and other special-shaped ring, the specifications from Ø 12mmto 400mm;

2 product after nice grinding, size and tolerance of minimal sealing performance is more superior

3 process in the process of adding corrosion resistant rare elements, sealing performance is more durable;

4 high strength and hardness of hard alloy material, no deformation, more compression.



Technical requirements for sealing rings

1 The bank tungsten carbide grades and their physical, mechanical properties and metallographic should meet the requirements of the relevant standards:

2 blank off the edge, the depth of the drop is not more than 0.33mm;

3 the surface of the blank must not be peeling, bubbling, delamination, crack, porosity, over burning, less burning and so on;

4. The blank section of the organization should be uniform, not a black, air bubble, delamination, crack, serious carburization and decarburization and not press good defects.

Introduction of tungsten carbide ring

Tungsten carbide  rings are made of the hardest metal on earth, they are tougher and more durable than the titanium rings. This is commonly used as a seal ring, disc cone, instrument etc.. tungsten ring, tungsten carbide ring between the difference maker does not include tungsten carbide of tungsten ring, tungsten ring only basically is a steel ring. It’s hard, but it doesn’t scratch. Tungsten carbide rings can only be scratched by diamond or corundum products containing minerals.

Advantages:

Tungsten carbide ring is the most wearable ring on earth.

Tungsten is about 10times harder than gold,5times harder tool steel,4times harder than titanium.

Due to its extremely high hardness, tungsten carbide rings can be kept for long periods of time in the ring than any other ring in the market

Tungsten carbide ring, known as the “per manet aperture”

Tungsten carbide ring will not bend

Grade information：

Recommend to YS2T (92HRA)

YG8 (89HRA)

YG15(86-87HRA)

YN8(anti-cossion)

Performance：

With high hardness, wear resistance, strength and toughness, good heat resistance, corrosion resistance and other a series of excellent properties, especially its high hardness and wear resistance, even at a temperature of 500 DEG C also remained unchanged, at 1000 DEG C still very high hardness.



size information

Specification: below size for your reference only. We can produce by customized



OD	ID	T
Φ215	Φ199.2	13
Φ120	Φ100	10
Φ174	Φ105	12
Φ149	Φ132	18
Φ80	Φ41	4
……	……	………

FAQ

1, Are you a trade company or a manufacturer?

Has been a professional manufacturer for over 15 years to undertake design and processing of all types of tungsten carbide productions service and technical support for customers.

2,Where is your factory located ?

We are located in Zhuzhou city, Hunan province where is base tungsten carbide products.

3,If I need a sample for pretest, do you sale sample for this inquiry?

Yes, we can sale sample for pretest. If you need this service, please contact us.

4,Can you produce the products according to my own drawing?

Yes, we can do OEM according to your requirement.

5,Are the products high quality?

Yes. All order will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

6,How long will it take to execute my order?

For the stock items, we can arrange the shipment within 3-5 days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.

7,How can I know how my order is being done?

We will inspect and test all merchandise in case of damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
